MultiGrip Jaws

MultiGrip Jaws work exclusively with the MultiGrip Vise and are available in a variety of configurations to suit almost any part. MultiGrip jaws feature the patented MultiGrip Vise Interface on bottom of the jaws. The MultiGrip Vise Interface allows a MultiGrip Vise to capture, index and secure the jaws and part without any fastners and with outstanding repeatability.

On the front of the MultiGrip Jaws is the MultiGrip Gripper interface. A robot equipped with a MultiGrip Gripper can use the MultiGrip interface to capture and secure the MultiGrip Jaws as a part gripping and transfer tool.

Features

  • Change vise workholding in seconds by operator or robot
  • Repeatability of 0.0008” or better with MultiGrip Vise
  • No indication of MultiGrip Jaws necessary after change over for most applications
  • Precision manufactured using 5-axis CNC
  • 6061-T6 aluminum for lightweight and durability

More Information

Related Products

Schunk MultiGrip Vise, MultiGrip Robot Grippers

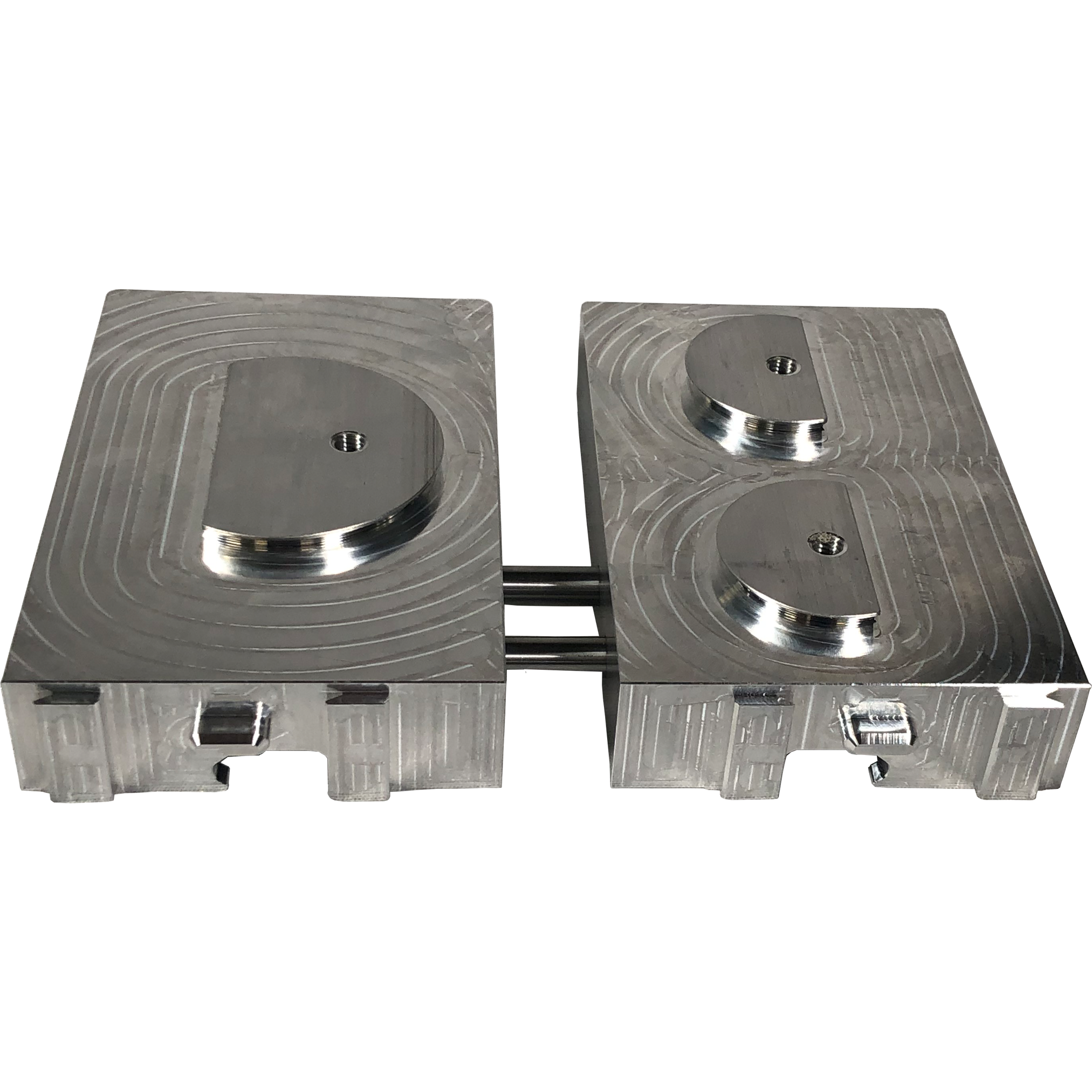

MultiGrip Base Jaws

MultiGrip Base Jaws work with MultiGrip Top Jaws to provide a complete soft jaw system for the MultiGrip Vise. For operator loading, typically one set MultiGrip Base Jaws is required per MultiGrip Vise. One set of machineable MultiGrip Top Jaws are used per unique part shape held by the MultiGrip Vise.

Features

  • Vise interface allows MultiGrip Jaws to be setup in just seconds
  • Low-cost replaceable MultiGrip Top Jaws (sold separately) snap into place and reduce storage space and ownership costs
  • MultiGrip Base Jaws include a fixed jaw side and a swivel jaw side, the swivel side allows the jaw to better conform to material variations
  • Available in OD (Outer Diameter) and ID (Inner Diameter) clamping styles
  • MultiGrip Gripper interface enables flexible automation using a MultiGrip Gripper
  • Repeatability of 0.0008” or better when used with a MultiGrip vise and according to instructions
  • Requires MultiGrip Top Jaws sold separately

Buy With Confidence

The MultiGrip Base Jaws come with a 1 year warranty

More Information

Ordering Information

MultiGrip Base Jaws OD $499
MultiGrip Base Jaws ID $499

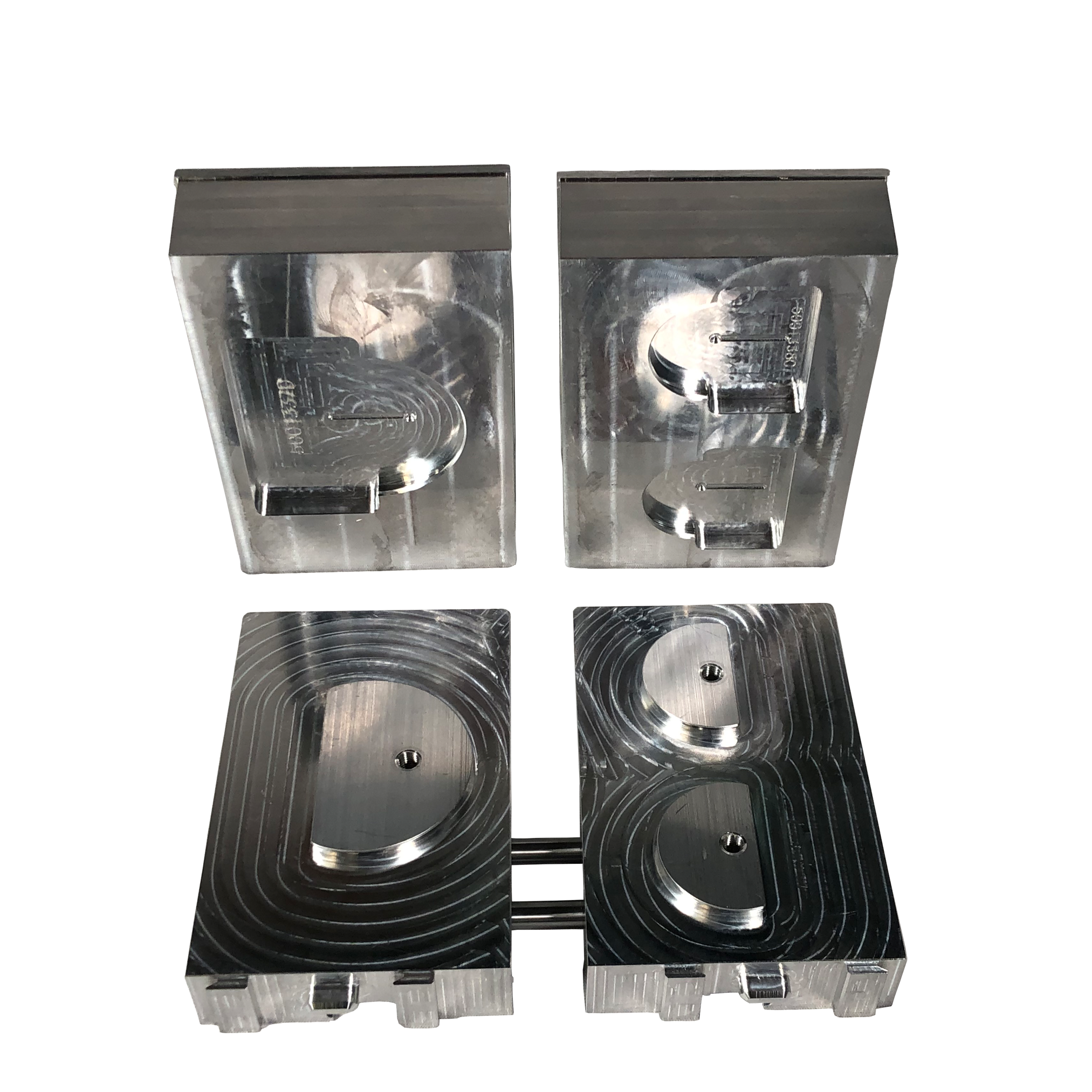

MultiGrip Top Jaws

MultiGrip Top Jaws work with MultiGrip Base Jaws as the per part consumeable component. One set of machineable MultiGrip Top Jaws are used per unique part shape. MultiGrip Top Jaws are available in three different thicknesses to suit a wide variety of part shapes. OD (Outer Diameter) clamping style jaws include a 1/8" machineable aluminum spacer used to set jaw spacing when machining the jaws. ID clamping style jaws require MultiGrip ID Jaw Clamping Fixture sold separately.

Features

  • Base Jaw interface allows MultiGrip Top Jaws to snap into place in just seconds
  • Compact design reduces storage space and ownership costs
  • MultiGrip Top Jaws include a fixed jaw side and a swivel jaw side, the swivel side allows the jaw to better conform to material variations
  • Available in OD (Outer Diamter) and ID (Inner Diameter) clamping styles
  • Repeatability of 0.0008” or better when used with MutliGrip Base Jaws and a MultiGrip Vise and according to instructions

More Information

Ordering Information

MultiGrip Top Jaws OD 1" $79
MultiGrip Top Jaws OD 1.5" $99
MultiGrip Top Jaws OD 2" $119
MultiGrip Top Jaws ID 1" $79
MultiGrip Top Jaws ID 1.5" $99
MultiGrip Top Jaws ID 2" $119

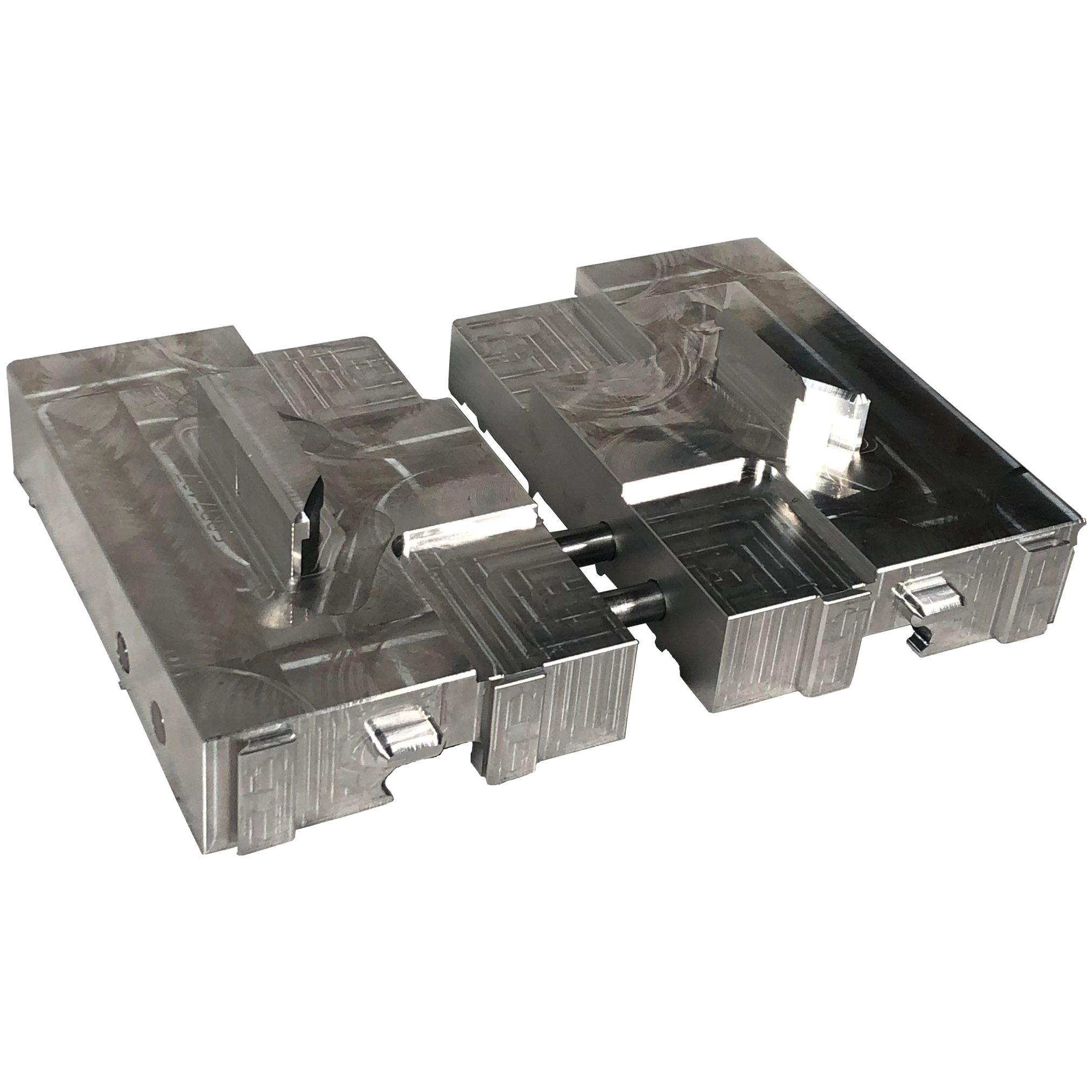

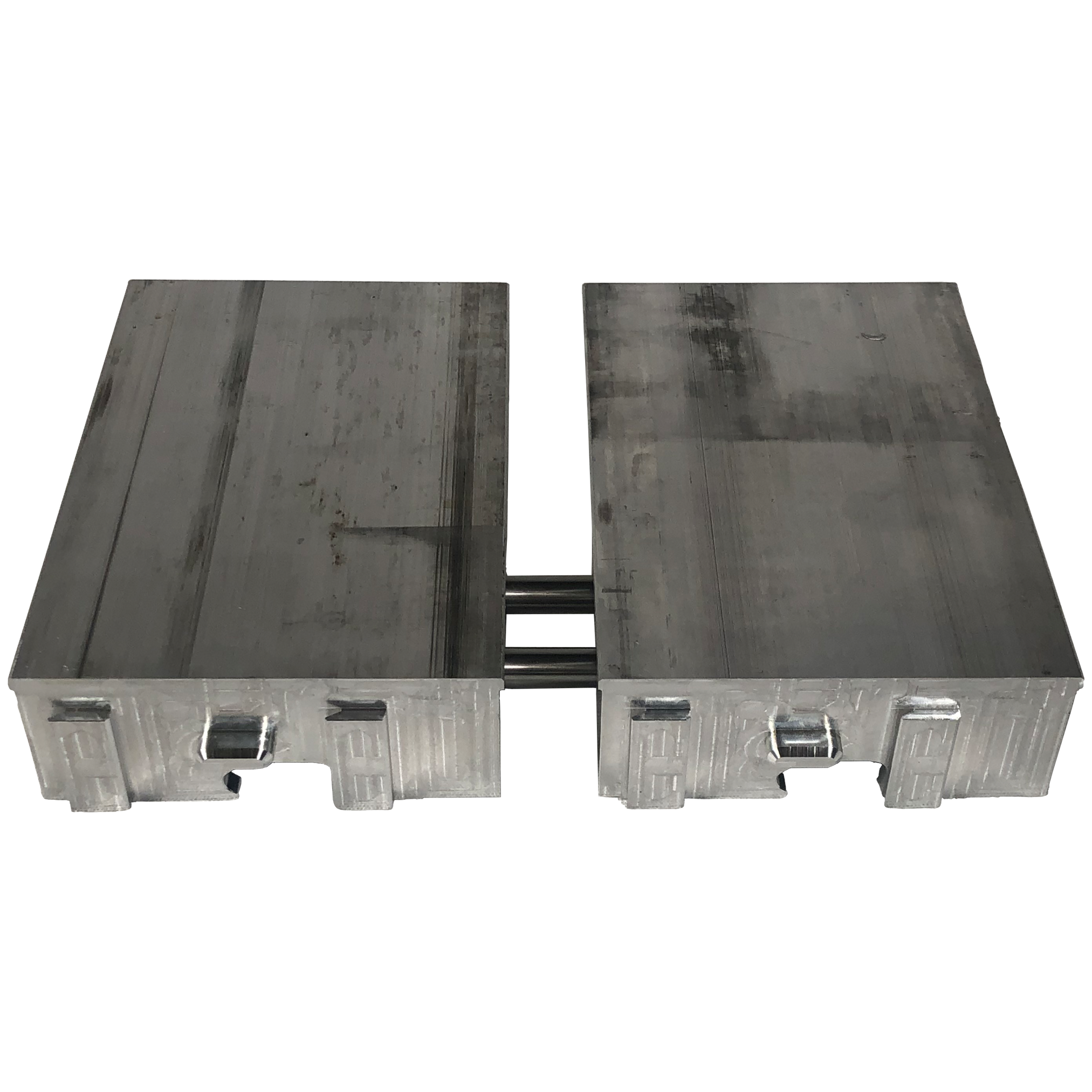

MultiGrip Fixed Jaws

MultiGrip Fixed Jaws have a built-in machineable surface instead of the replaceable Top Jaws of the MultiGrip Base Jaws. Use MultiGrip Fixed Jaws in applications where the weight of the jaws or the overall height of the jaws must be kept to a minimum. OD (Outer Diameter) clamping style jaws include a 1/8" machineable aluminum spacer used to set jaw spacing when machining the jaws. ID clamping style jaws require MultiGrip ID Jaw Clamping Fixture sold separately.

Features

  • Available in OD (Outer Diamter) and ID (Inner Diameter) clamping styles
  • Repeatability of 0.0008” or better when used with a MultiGrip Vise and according to instructions
  • Jaws are ordered by overall height and clamping style
  • Follow guidelines in MultiGrip Machinists Manual for best results

More Information

Ordering Information

MultiGrip Fixed Jaws OD 1.5" $249
MultiGrip Fixed Jaws OD 2.5" $299
MultiGrip Fixed Jaws ID 1.5" $249
MultiGrip Fixed Jaws ID 2.5" $299

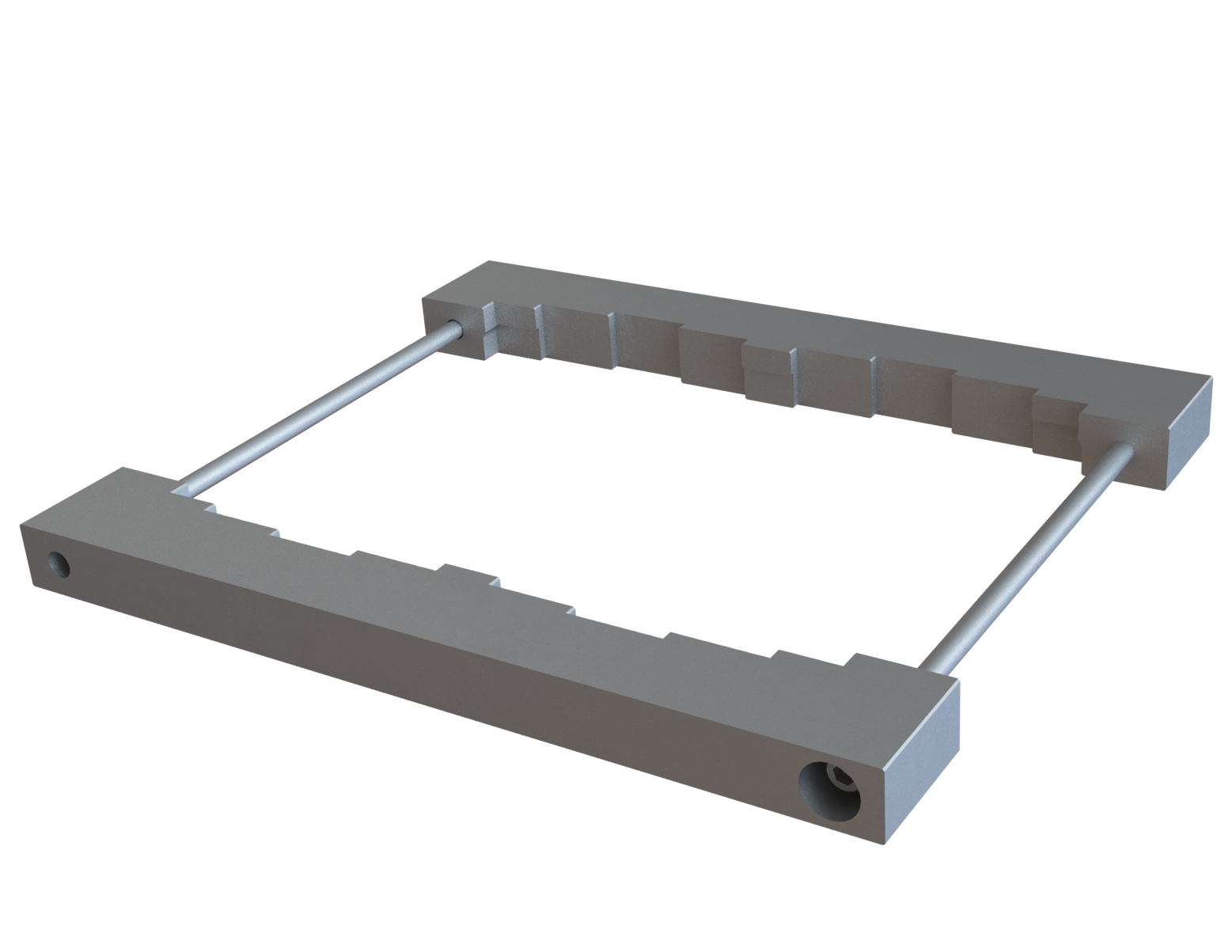

MultiGrip ID Jaw Clamping Fixture

The MultiGrip ID Jaw Clamping Fixture is used when machining ID versions of the MultiGrip Top Jaws or MultiGrip Fixed Jaws. The MultiGrip ID Jaw Clamping Fixture allows the jaws to be held at the proper spacing during machining. The MultiGrip ID Jaw Clamping Fixture is reuseable.

Features

  • Holds ID version of MultiGrip Top Jaws or MultiGrip Fixed Jaws when machining jaws to hold a part
  • Simple to use and reuseable

More Information

Buy With Confidence

The MultiGrip ID Jaw Clamping Fixture comes with a 1 year warranty

Ordering Information

MultiGrip ID Jaw Clamping Fixture $199
