CNC Automation Kits for Universal Robots

CNC Mill Automation Kit for Universal Robots

The CNC Mill Automation Kit for Universal Robots is a complete solution for automating CNC milling production. All components in the kit are designed, built and tested by VersaBuilt to work together to maximize reliability. VersaBuilt's patented MultiGrip workholding system makes it easy to add new parts for automation and is the only automation workholding system that has multi-operation processing built-in. The VersaBuilt UR CNC Automation Program eliminates the need to learn the complexities of robot programming - simply enter part configuration data like part width, length and height and the Versabuilt UR CNC Automation program does the rest. The MultiGrip FJ Vises include hand-control valves that allow the CNC to continue to be used manually by an operator. The kit even includes enough MultiGrip Jaw components to automate your first two parts. There is no easier or more flexible way to automate CNC production than with a VersaBuilt CNC Mill Automation Kit for Universal Robots.

  • VersaCart 1300 Robot Cart with Visual Infeed System
  • MultiGrip FJ Robot Gripper
  • Two MultiGrip FJ Vises with hand valve for operator manual loading
  • Robot2CNC Mill Panel
  • Two sets of MultiGrip Base Jaws
  • Four sets of machineable MultiGrip Top Jaws
  • VersaBuilt UR CNC Automation Program - no programming required
  • VersaBlast In-CNC Part and Jaw Cleaning System
  • All pneumatic valving and air lines
  • Detailed instructions and online videos
  • VersaBuilt Support Team to ensure your success

Buy With Confidence

VersaBuilt CNC Mill Automation Kits come with a 2 year warranty

More Information

Ordering Information

VersaBuilt CNC Mill Automation Kit for Universal Robots $19,995

Mill Starter Kit Options

CNC Door Openers

VersaDoor Single Door 24" $995
VersaDoor Single Door 30" $1095
VersaDoor Single Door 40" $1295
VersaDoor Double Door 48" $1595

Door Sensor Kits

VersaDoor Sensor Kit Single $495
VersaDoor Sensor Kit Double $990

Accessories

Z Push Tool $95
Y Push Tool $95

Kit Contents

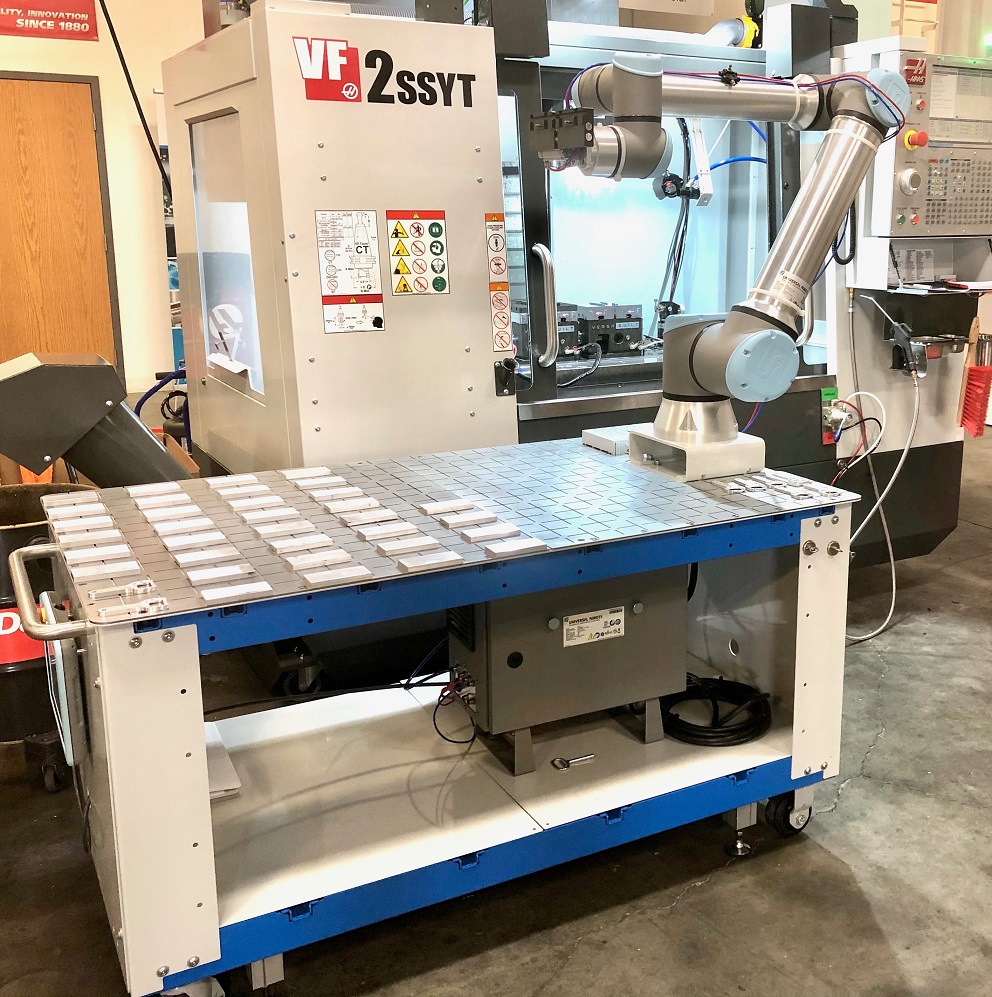

VersaCart 1300

The VersaCart 1300 is sized to provide a generous infeed area yet is compact enough to fit in even the most crowded CNC spaces. The VersaCart 1300 is CNC laser cut and formed from powder coated steel for precision, durability and long life. The Visual Infeed System allows for fast easy part alignment by the operator for pickup by the robot. The lower shelf provides storage for the robot controller and may also be used to store MultiGrip Jaws. The VersaCart 1300 is mounted on heavy duty caster for portability and includes leveling feet to secure the VersaCart into position in front of the CNC.

Features

  • Optimized for the UR10 robot
  • Almost 1800 square inches of infeed capacity
  • Visual Infeed System
  • Casters allow for portability between CNC machines
  • Stores and protects robot controller

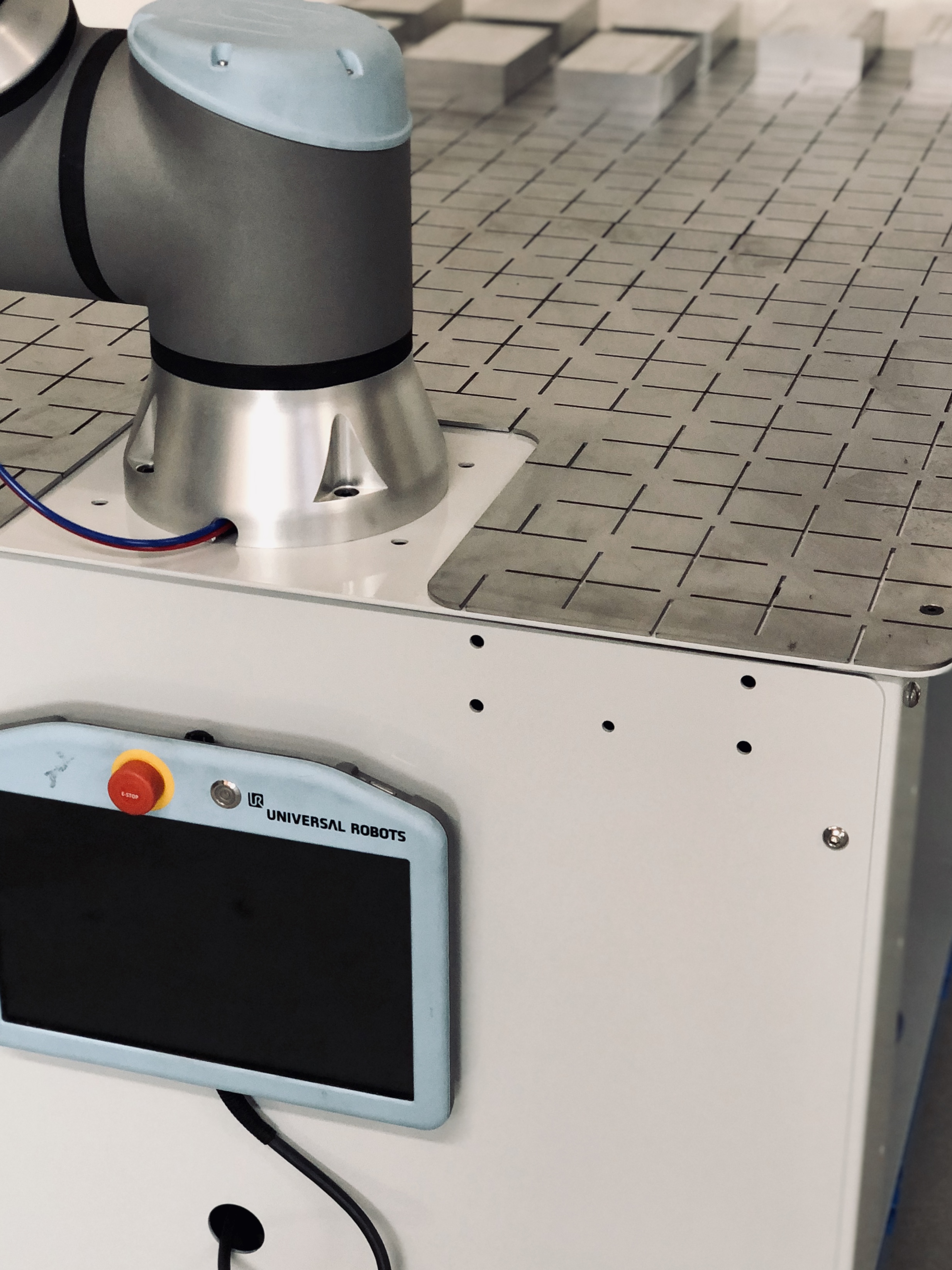

  • Secures teach pendant for convient access
  • Leveling feet secure VersaCart in place for processing
  • Designed for easy cleaning
Learn More

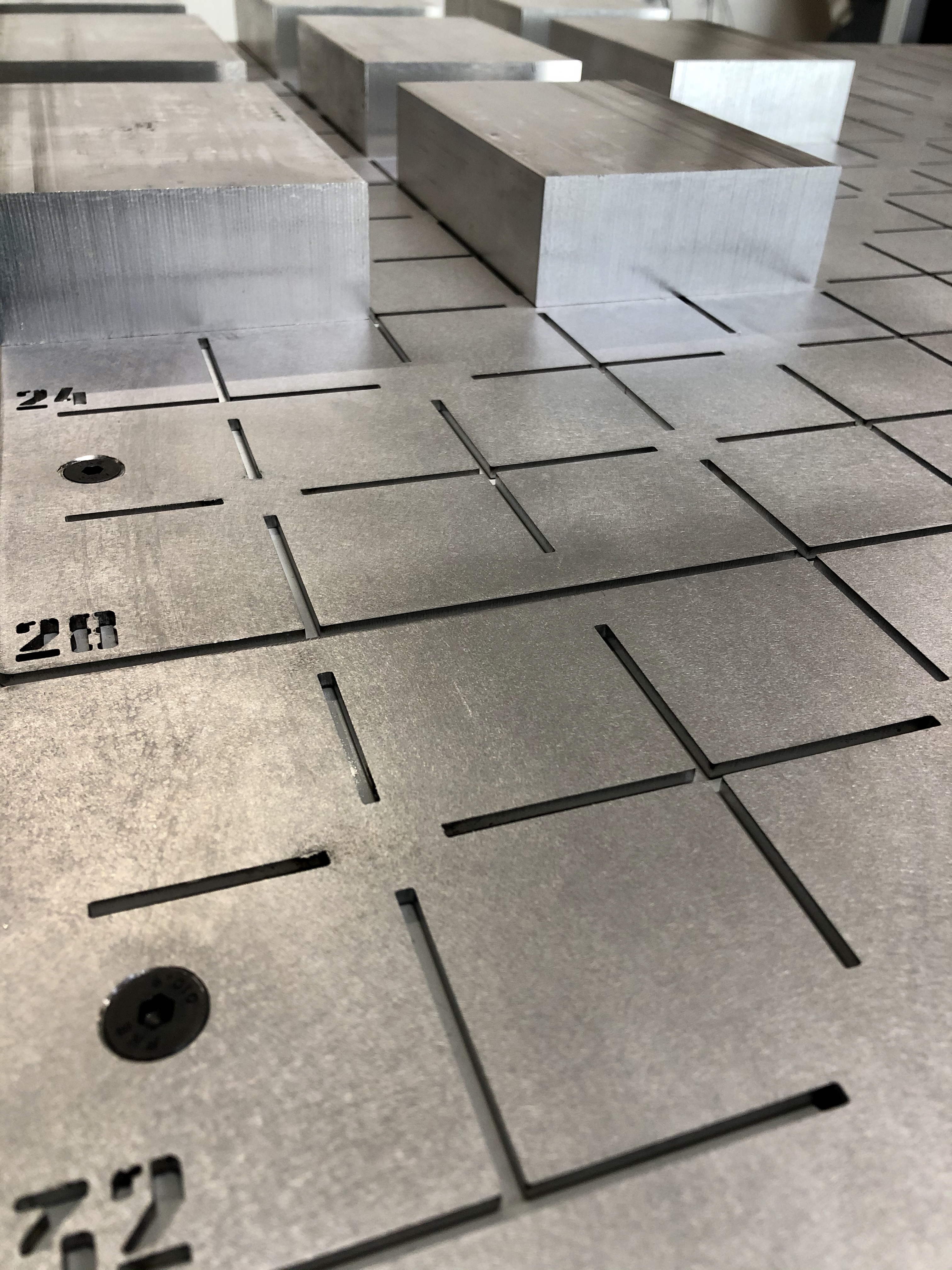

Visual Infeed System

The VersaCart Visual Infeed System is a laster cut galvanized steel plate that bolts to the top of the VersaCart. A 2" by 2" alignment grid makes it easy for an operator to quickly and accurately align material to be processed by the robot. The grid pattern works well for both rectangular and rounds shapes. For non-uniform shapes, the Visual Infeed System can be removed in just a few minutes and replaces with custom laser cut part locators.

  • Locates parts for robot pickup quickly and accurately
  • Works with most part shapes
  • Maximizes infeed capacity over a wide range of part sizes
  • Reduces setup time and cost vs custom part locators
  • Removes in minutes for easy clean-up

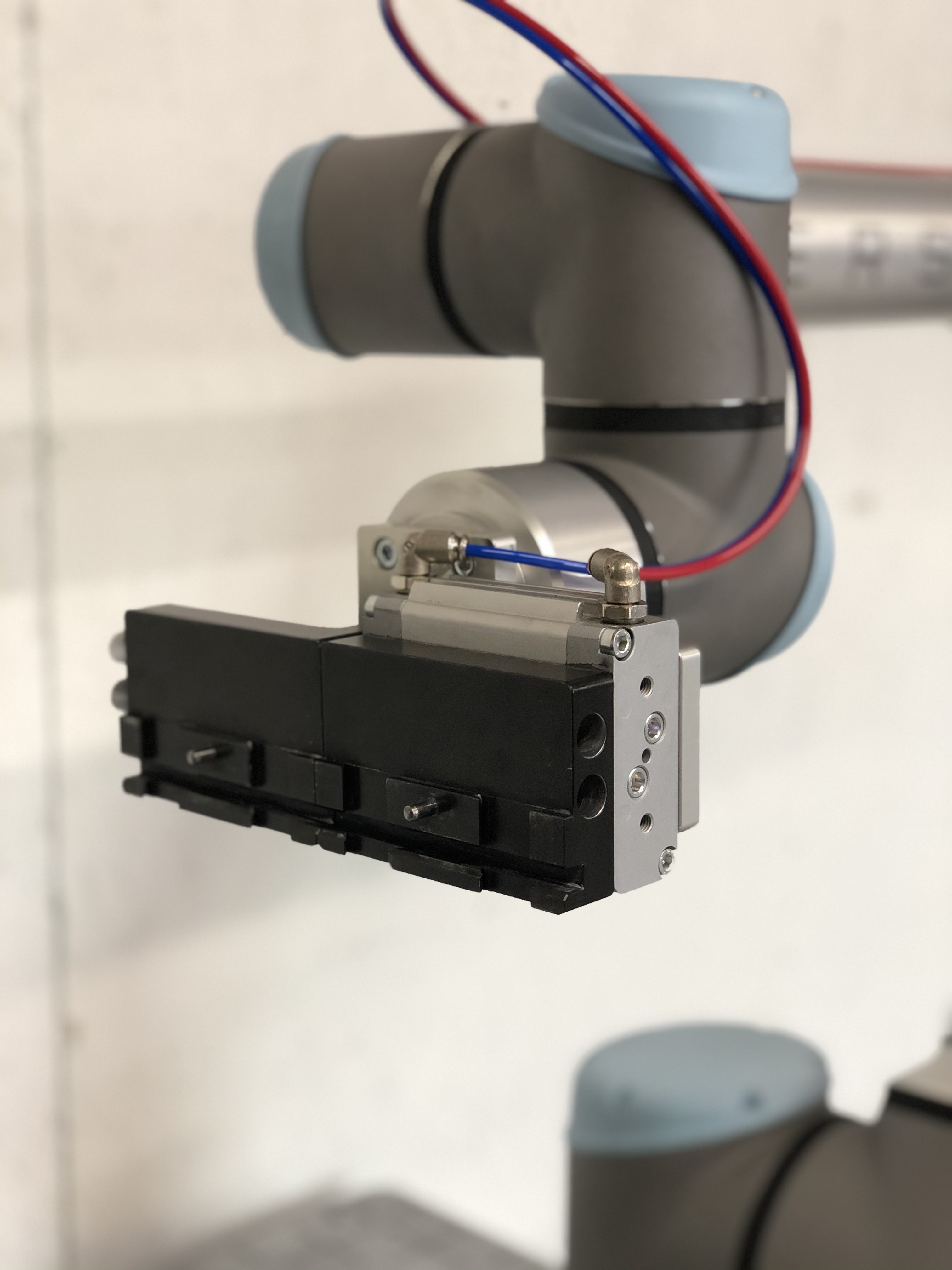

MultiGrip FJ Gripper

The MultiGrip FJ Gripper is a high-power pneumatic fixed-jaw gripper with the MultiGrip tool-exchanging interface. With the included MutliGrip Jaws and MultiGrip vises, the MultiGrip FJ Gripper allows for multi-operation automation of CNC mill parts without robot programming.

Features

  • Fixed Jaw Gripper allows for smooth loading of the MultiGrip FJ Vise
  • Light weight (3.75 pounds, 1.7KG) to maximize part payload
  • Up to 200 pounds of clamping force
  • Precision manufactured using 5-axis CNC
  • Hard anodized 6061-T6 aluminum for light weight and durability
    • Learn More

MultiGrip FJ Vises

The MultiGrip FJ Vise is designed and manufactured by VersaBuilt for CNC milling automation. The MultiGrip FJ Vise incorpates a fixed jaw and a pneumatically actuated moveable jaw. The fixed jaw provides a consistent datum to improve repeatability. The moveable jaw slides on precision ground 2" diameter steel shafts. High-pressure air acts directly on the steel shafts decreasing cracking pressure allowing the MultiGrip FJ Vise to clamp delicately on plastic or dig into steel billet for heavy roughing. Rod wiper seals prevent chips from entering vise internals and wash down holes allow chips to be cleared with CNC coolant during automation processing.

Features

  • Fixed Jaw Vise for maximum repeatability
  • Compact size allows for installation flexibility in compact CNCs
  • Precision manufactured using 5-axis CNC
  • Made from precision ground steel and hard anodized aluminum and for maximum rigity and durability
  • Table mounted hand valves for manual operation
  • Kit includes 2 MultiGrip FJ Vises for seamless multi-operation processing
    • Learn More

VersaBlast In-CNC Part and Jaw Cleaning System

The VersaBlast In-CNC Part and Jaw Cleaning System uses an air amplifier to generate a powerful blast of air from your shop air supply to remove chips and coolant from MultiGrip Jaws and Parts. After unloading MultiGrip Jaws from a MultiGrip vise, the MultiGrip Jaws must be cleaned before the jaws are reloaded into the MultiGrip Vise. VersaBlast is mounted inside the CNC to contain chips and coolant and includes a mounting bracket with powerful magnets that attaches VersaBlast securely to the sheet metal inside of the CNC. VersaBlast includes everything necessary to integrate VersaBlast into your CNC automation system including pneumatic valving, pneumatic hose with push-to-connect fittings.

Features

  • Amplifies volume of shop air by up to 25x to clean MultiGrip Jaws quickly and thoroughly
  • Universal mounting bracket allows VersaBlast to be mounted inside the CNC using powerful rare-earth magnets
    • Learn More
